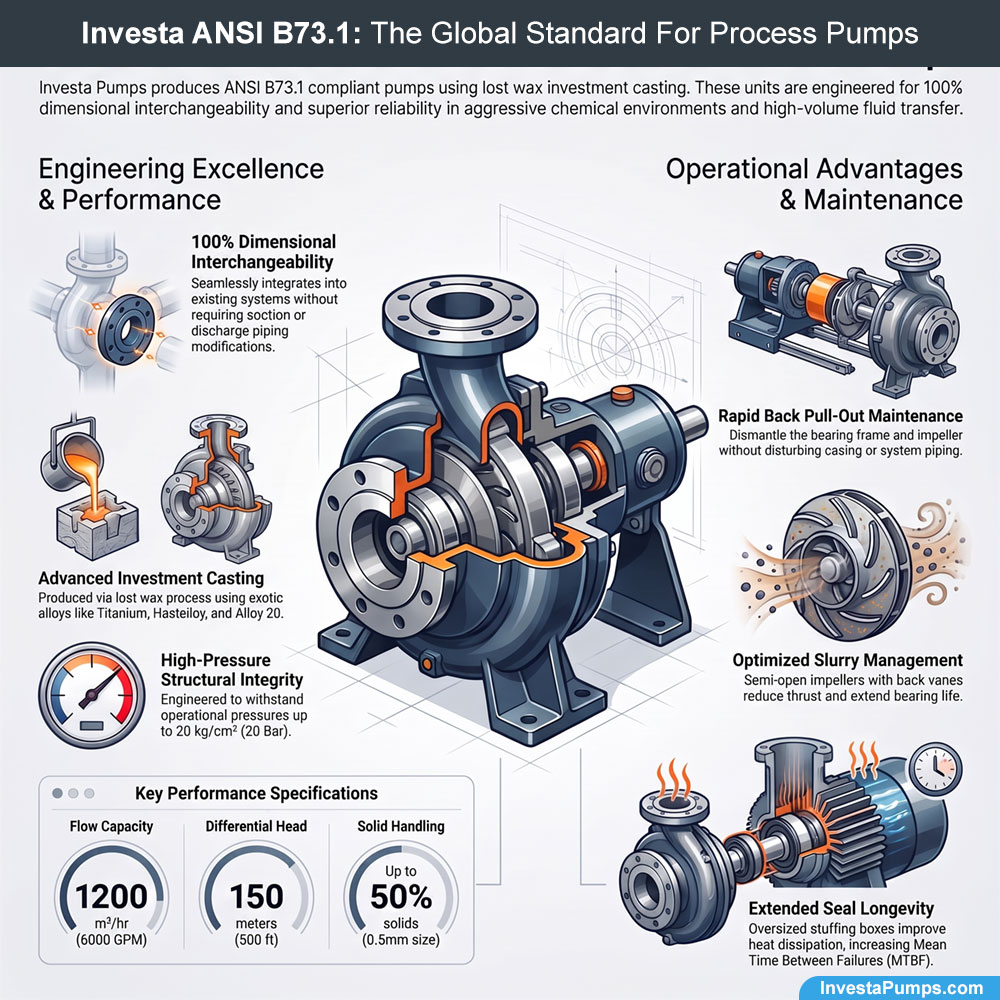

Investa’s ANSI series strictly adheres to ANSI B73.1 dimensional standards and features ASME/ASA 150 Flanges with raised faces for secure, standardized industrial connections. Engineered for high-volume fluid transfer, these pumps deliver a capacity of up to 1200 m³/hr (6000 GPM) and a differential head of up to 150 meters (500 ft).

Key Engineering Features:

• Back Pull-Out Design: Engineered for rapid maintenance and reduced plant downtime.
• Semi-Open Impellers: Featuring integrated back vanes for superior thrust management.
• Advanced Stuffing Box Geometry: Versatile configurations to accommodate a wide range of mechanical seal arrangements.

Operational Advantages & Reliability:

• Maintenance Efficiency: The back pull-out design allows the entire bearing frame and impeller unit to be dismantled without disturbing the pump casing or suction/discharge piping. This ensures ease of maintenance and facilitates regular checks for internal wear without a full system teardown.
• Superior Slurry Management: Our semi-open impeller is optimized for handling slurries and industrial media with solid content up to 50% (particle sizes up to 0.5mm). The addition of back vanes significantly reduces radial and axial thrust, protecting the bearings and extending the unit's operational life.
• Extended Seal Life: The oversized stuffing box provides a larger surface area for heat dissipation, ensuring the optimal performance of single, double, or tandem mechanical seals. This design accommodates various API seal plans, resulting in a substantially increased Mean Time Between Failures (MTBF).

Investa ANSI pumps are designed to withstand pressures up to 20 kg/cm² (20 Bar), ensuring long-term structural integrity in high-stakes environments. For decades, our ANSI range has provided a benchmark for reliability across diverse sectors, including Pharmaceuticals & API, Starch and Corn processing, Mineral Recovery, Dyes and Intermediates, Chloro-Alkali, Distilleries, and Specialty Chemicals. Whether utilized in steel plants or for the transfer of volatile organic liquids, Investa ensures world-class performance and a lower Total Cost of Ownership (TCO).
