Barrel Pumps

Barrel Pumps Manfacturer in India

Investa Pumps is a leading manufacturer of barrel pumps with wide range of options and operating features, to cater to the many industries. Based in Mumbai with factory in Valsad (Gujarat;India), we have over 40 years experience in pump manufacturing.

Barrel Pumps are available in Stainless Steel: SS-316/ Polypropylene / Teflon Materials of Construction

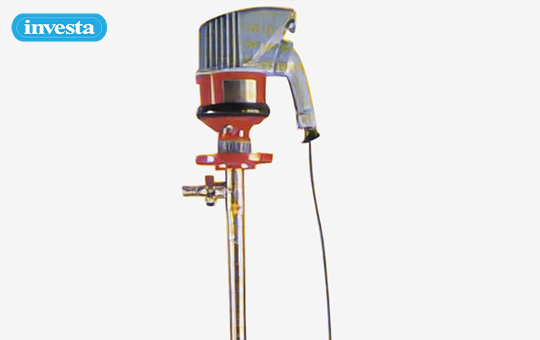

Stainless Steel: SS-316
  • All wetted parts like pumping chamber, pump base, discharge tee, nozzle, wing nut, impeller are made of SS-316 investment castings.
  • The outer and inner pipes are seamless type made of SS-316.
  • The shaft is made of SS-316 Bright Bar.
  • The Guide Sleeve and Lip Seals are made of Teflon.

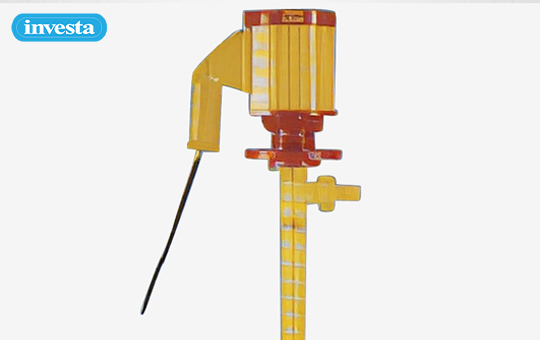

Polypropylene with imported Hastalloy-B2 Shaft
  • All wetted parts, outer & inner pipes are made of polypropylene.
  • The shaft is made of imported Hastalloy-B2 (containing 29% Molybdenum).
  • The impeller is made of ETFE (molding grade of Teflon).

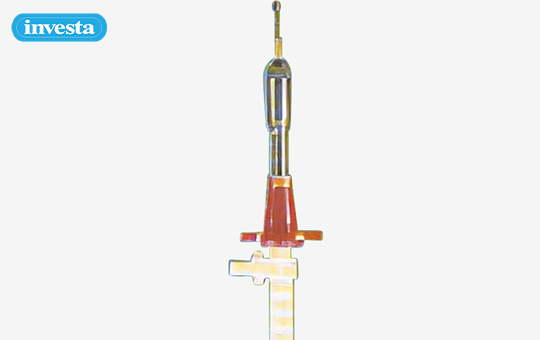

PTFE (Teflon) with Hastalloy-B2 or SS-316 Shaft
  • All wetted parts are fabricated from PTFE.
  • Outer & inner pipes and Guide Sleeve are made of pure Teflon.
  • The shaft is made of SS-316 or Hastalloy-B2.
  • The impeller is made of ETFE

Drive Units Available

  • Flameproof Electric Motor (Certified by CMRI) TEFC, Single phase, 230V, 50 Hz. 0.7 HP, 15,000 RPM, AC/DC Electric motor, suitable for explosive atmosphere of gas group I, II-A & II-B.
  • Pneumatically Operated Air motor Chicago Pneumatic make, In-built regular type, 21,000 RPM, working at 4 to 7 bars air pressue and consuming 25 cfm of air.
  • Non Flameproof electric motor Single phase, 230V, 50Hz. 0.7 HP, 15,000 RPM, AC/DC type universal electric motor

Applications of Barrel Pumps

  • Stainless steel with Flameproof Electric motor: For almost all types of solvents, varnishes, turpentine, paints, gasoline, HSD, petroleum products, chloroform, drugs & pharmaceuticals, degreasing agent, phenol, IPA, LDO, Water Treatment Chemicals, Nitric Acid, Phosphoric Acids and Thermic fluids.
  • Polypropylene Barrel Pumps with Hastalloy-B2 shaft: For highly corrosive liquids like concentrated HCL, Diluted H2SO4, HF, NaOH, Formic Acid, Electroplating solutions, photographic developers, salt solution, pesticides, intermediates and toxic chemicals.
  • Teflon Barrel Pumps: Suitable for all the above liquids.

Salient Features of Barrel Pumps

  • Seal less design
  • Self priming type
  • Light weight and hence portable
  • Sleek barrel pumps with their versatility helps to provide a complete solution to your fluid management needs.
  • Modular design construction for easy maintenance.
  • All components are interchangeable.
  • High standards of quality and safety ensures reliable performance for handling aggressive, corrosive and flammable liquids.
